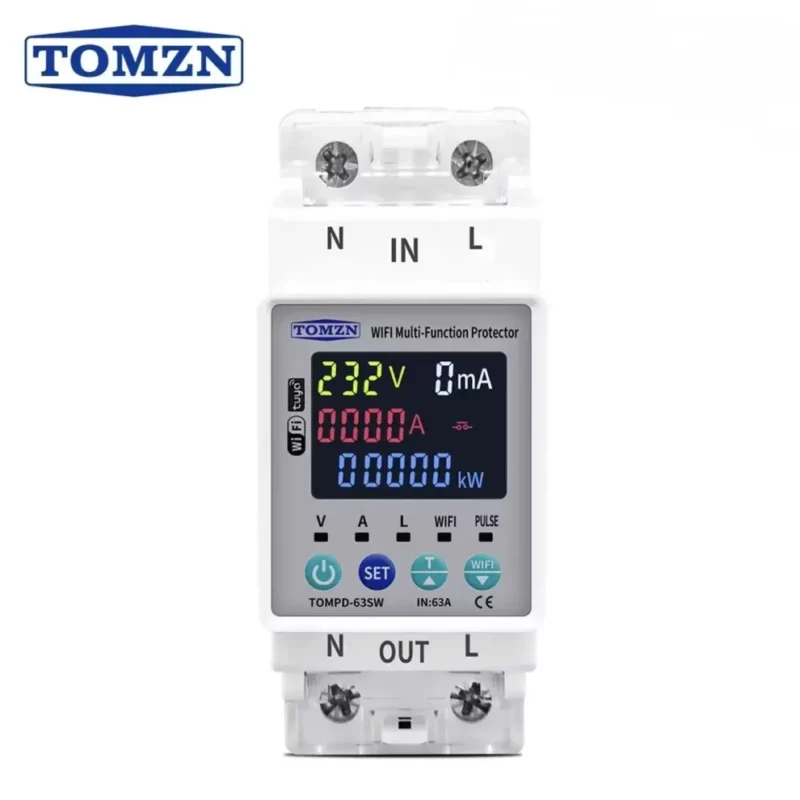

TOMZN TOMPD-63SW WiFi Smart Circuit Breaker with Real-Time Energy Monitoring and App Control

TOMZN TOMPD-63SW WiFi Smart Circuit Breaker in Bangladesh

Get The TOMZN TOMPD-63SW WiFi Smart Circuit Breaker at koddax Enjoy top quality and unbeatable prices with the best customer service in Bangladesh

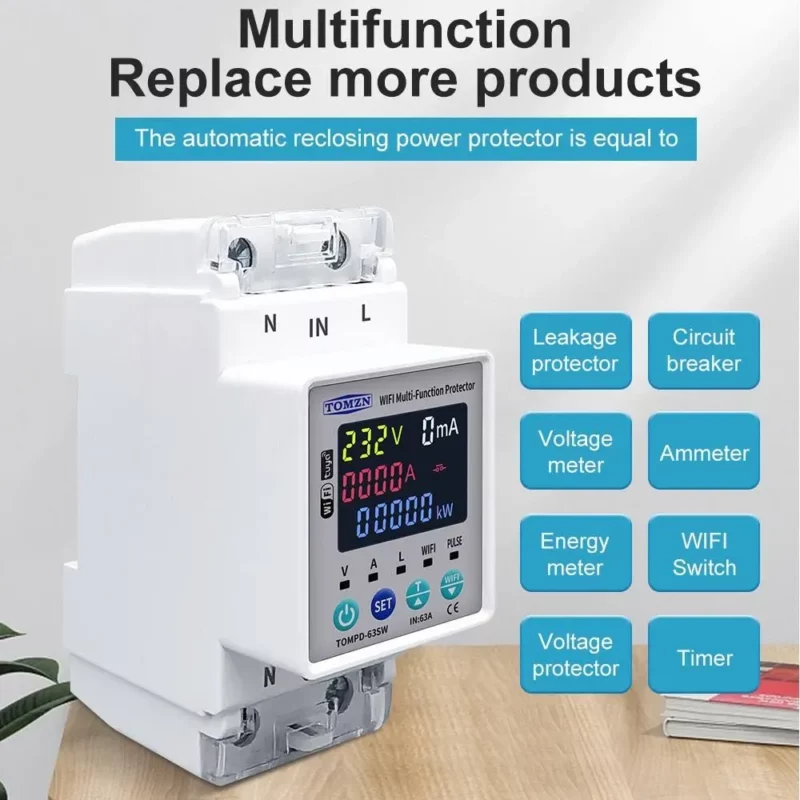

The TOMZN 63A Smart WiFi Circuit Breaker is a next-generation safety and energy management solution designed for residential, commercial, and industrial applications. It supports remote control via the Smartlife (TUYA) app and provides real-time monitoring of energy usage with advanced protections such as over/under voltage, overcurrent, and leakage current. Compatible with both 110V and 230V systems.

Features:

• Remote ON/OFF control from anywhere using a smartphone

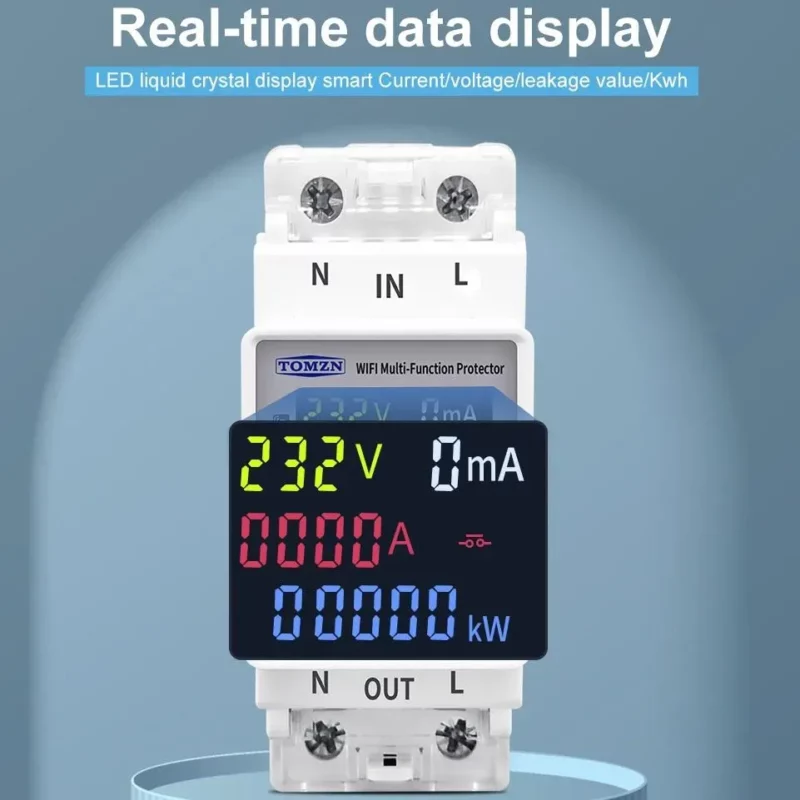

• Real-time monitoring of voltage, current, power (kWh), and leakage current
• App-based programmable timer via TUYA Smartlife
• Adjustable protection for overvoltage, undervoltage, overcurrent, and leakage current
• Supports both 110V and 230V input (L + N)
• Automatic power reconnection with delay timer
• Manual and app control supported for protection settings
• Compact design suitable for standard circuit panels
• Calibration options for voltage, current, and power
• Low power consumption operation

7 days replacement warranty( if there any manufacturing defects)

Specifications:

• Model: TOMPD-63SW (WiFi), TOMPD-63s (Non-WiFi)
• Rated Voltage: 80V–300V AC, 50/60Hz
• Rated Current: 1A–63A (adjustable)

Voltage Protection:

• Overvoltage: 120V–300V (default 270V)
• Undervoltage: 80V–210V (default 170V)
• Overcurrent Protection: 1A–63A (default 40A)
• Leakage Protection Range: Adjustable (value based on model)
• Reconnect Delay: 1–500s (default 30s)
• Action Time: 1–30s (default 1s)
• Calibration Range: ±9.9%
• Power Consumption: Less than 2W
• App Support: TUYA Smartlife (WiFi model only)

Adjustable Protection Settings:

1. Under-Voltage Protection: Adjustable range from 85V to 220V (default: 170V).
2. Over-Voltage Protection: Adjustable range from 110V to 300V (default: 275V).
3. Over-Current Protection: Adjustable range from 1A to 63A (default: 63A).
4. Earth Leakage Protection: Adjustable range from 10-300mA.
5. Temperature Protection: Can be set in the app or manually adjusted.

Benefits & Usability:

• Ensures full protection against electrical hazards
• Helps reduce electricity bills by monitoring real-time usage
• Suitable for home, office, and industrial power systems
• Ideal for smart home automation systems
• Customizable protection levels ensure flexible safety management
• Compact and easy to install in existing breaker panels

Why Choose This Product:

• Combining safety and smart automation in one device
• Compatible with the widely used TUYA Smartlife ecosystem
• Supports both app control and manual setup
• Reliable and durable build with industrial-grade materials
• Supports dual voltage systems (110V and 230V)

Packaging Content:

• 1× TOMZN 63A Smart Circuit Breaker (WiFi model)

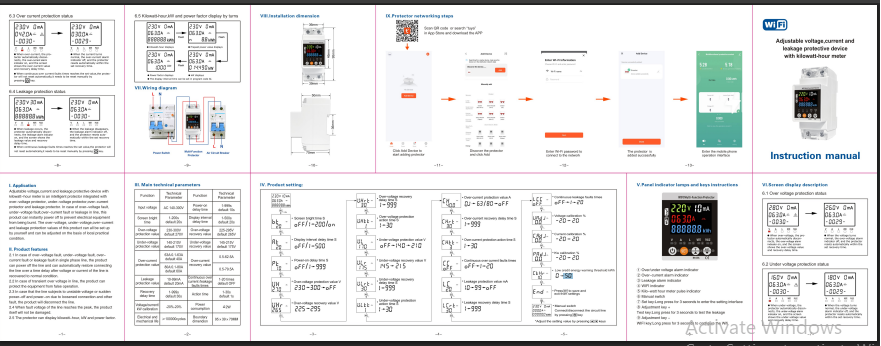

• User Manual for TOMZN TOMPD-63SW:
